SC100

The SC100 is a premium 98% mechanical keyboard barebone kit that combines full-size functionality—including a number pad, function keys, and an arrow cluster—with a streamlined frame and enthusiast-grade construction. Built around a solid CNC-machined aluminum case with advanced acoustic dampening, the SC100 is perfect for custom keyboard builders, typists, power users, and gamers who want both performance and style.

Designed for effortless modification, the SC100 features a tool-free quick-release case system that allows you to open and adjust foams, plates, and switches with ease—encouraging experimentation and sound tuning without the need for tools.

With gasket-style mounting, hot-swappable PCB, tri-mode wireless connectivity, and robust battery life, this keyboard kit checks all the boxes for an enthusiast-level build that’s both versatile and customizable.

Features:

98% Layout (101 Keys) – Compact full-size format with numpad and arrow keys in a slightly reduced footprint to save desk space.
CNC Aluminum Case – Durable 6063-series CNC-machined aluminum housing with a substantial weight (~2.1 kg) for stability and a premium feel.
Quick-Release Tool-Free Design – Four custom steel touch beads allow rapid opening of top and bottom halves without screws, simplifying maintenance and modding.
Gasket Mount Structure – Silicone gasket and flexible polycarbonate plate provide a cushioned, responsive typing experience with reduced vibration.

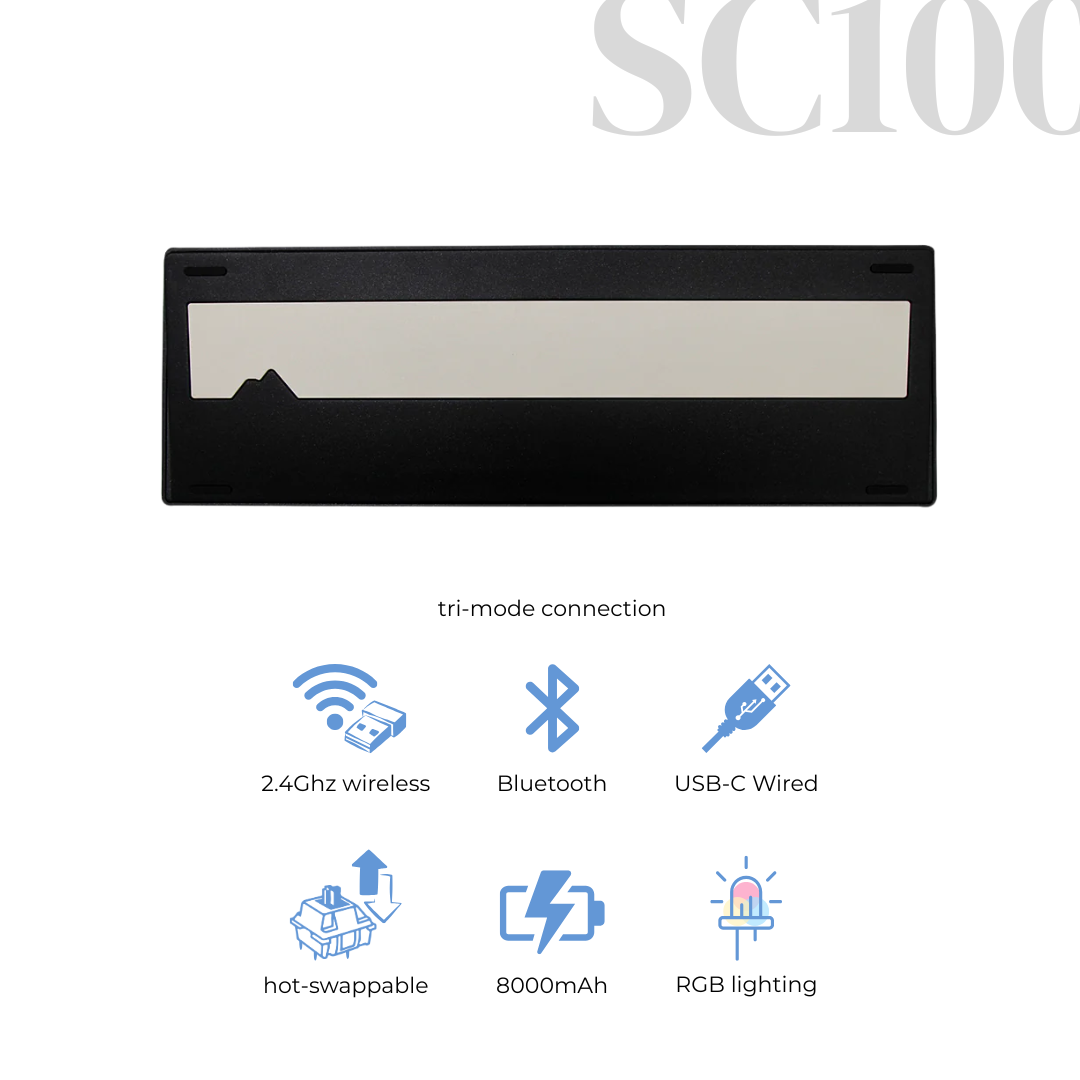

Tri-Mode Connectivity – Wired USB-C, low-latency 2.4 GHz wireless, and Bluetooth 5.0 support for multi-device use.

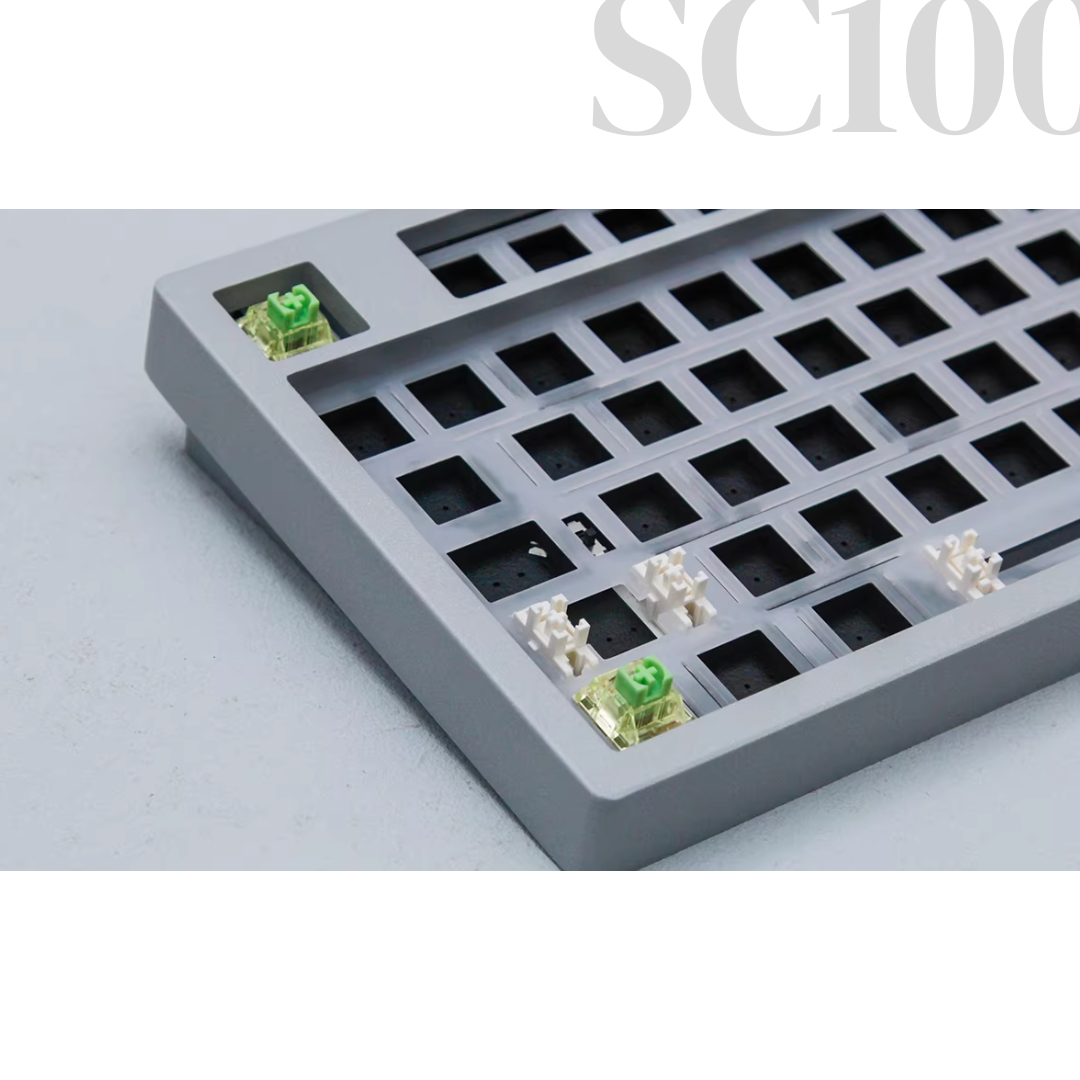

Hot-Swappable PCB – 1.2 mm hot-swap PCB with south-facing RGB allows easy switch changes (MX-style, 3-pin/5-pin) without soldering.

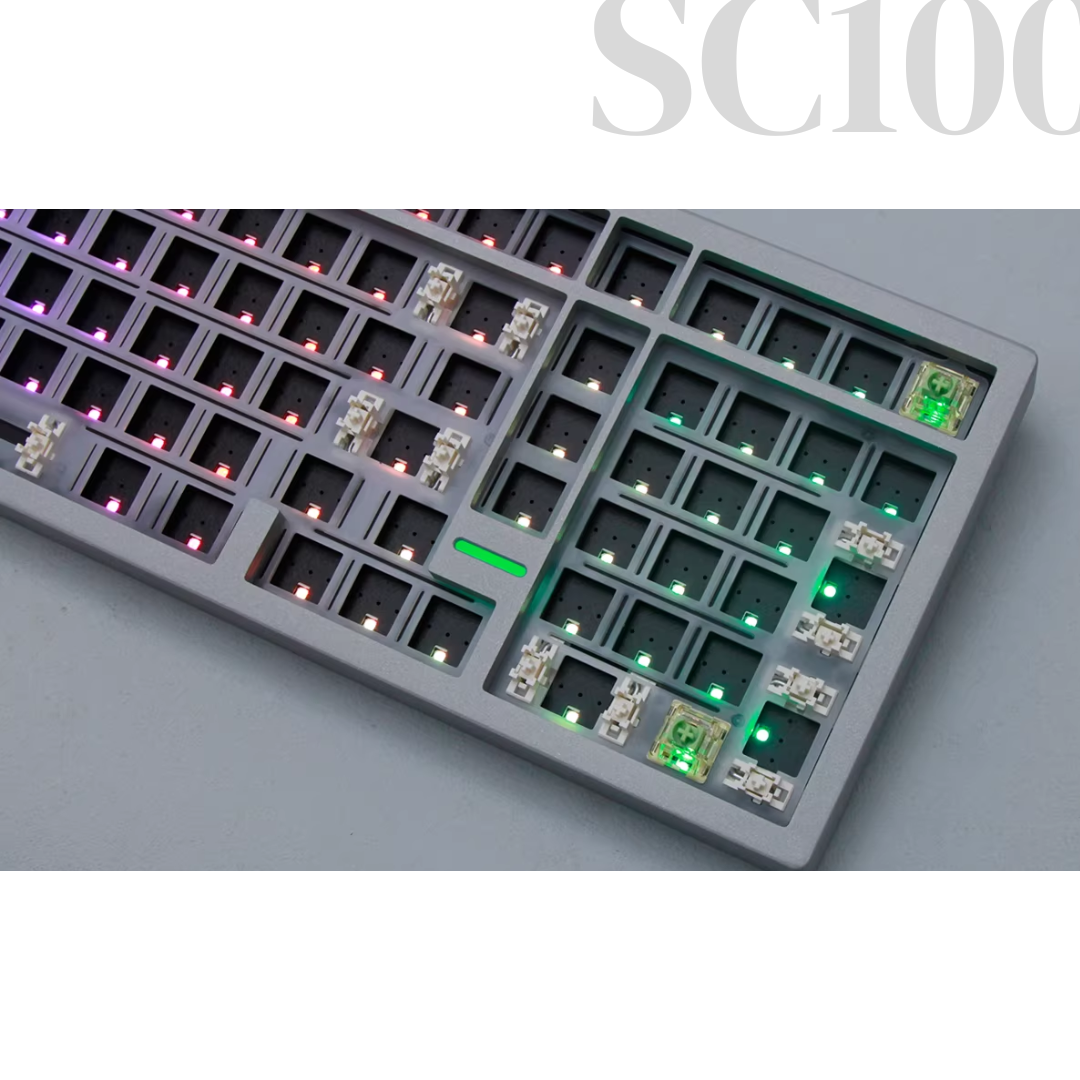

RGB Backlighting – South-facing per-key RGB lighting (dependent on PCB) with configurable effects via software.
Five-Layer Acoustic Damping – Comprehensive foam array (PORON sandwich cotton, bottom cotton, IXPE switch sheet) for deep, refined sound.
Software Customization – QMK/VIA compatible firmware for full remapping, macro creation, and lighting control.
Battery – 8000 mAh – Large dual-cell battery supports extended wireless sessions on Bluetooth or 2.4 GHz.
Compatibility – Supports Windows, macOS, and Linux systems; works with standard MX-style switches and keycap sets.

The Build-A-Board Kit:

SC100 Mechanical Keyboard Barebone (Case, PCB, Plate, Foams, Stabilizers) x 1
USB-C Cable x 1
Wireless 2.4 GHz Dongle (where applicable) x 1
